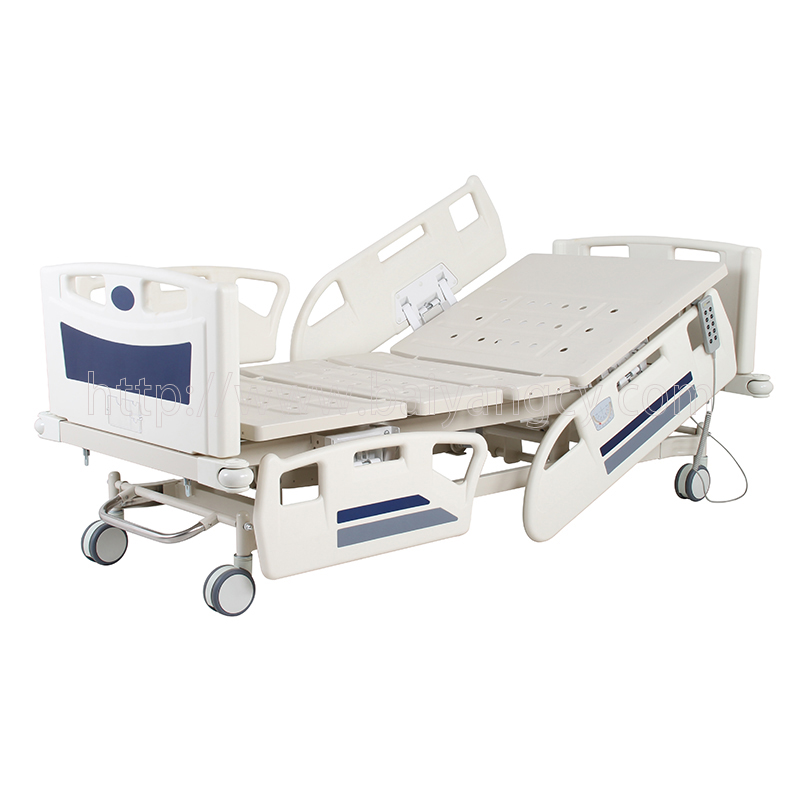

Overall size：2220*1080*520/790(±10mm)

Features：

1) Pressed steel mattress base with powder coating.

2) Removable ABS plastic head&foot board with locking stopper and protective corner bumper wheels

3) 4pcs ABS side rails provide the patient with protection against falls

4) Angle indicator: The angle indicator of side rails show the angles of the backrest and tilt of the whole bed mattress platform

5) Central locking castors are two-sides rubber with ABS nice cover.

1) Backrest angle 0-75°±5°

2) Legrest angle 0-40°±5°

3) Height adjusted 520mm to 790mm

4) Trendelenburg:0-12°; Anti-trendelenburg:0- 12°
